VirtualKeyboard

Accelerate

The VirtualKeyboard is a standalone control that provides an on-screen keyboard that can be manually placed in your application's layout. Unlike VirtualKeyboardScope, which automatically manages keyboard visibility based on focus, VirtualKeyboard is explicitly directed at a specific target input element.

Overview

VirtualKeyboard gives you more control over keyboard placement and behavior. It sends input directly to its designated target regardless of which control has input focus. This makes it useful for specialized input scenarios where automatic focus-based keyboard display isn't appropriate.

Properties

Property	Type	Description
Target	IInputElement	Gets or sets the input element that will receive keystrokes from the keyboard.
InputMethods	IEnumerable<VirtualKeyboardInputMethod>	Gets or sets the collection of input methods (keyboard layouts and IMEs) available to users.

Usage Examples

Basic Usage

<Window xmlns="https://github.com/avaloniaui"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
    <StackPanel>
        <TextBox x:Name="InputField" />
        <VirtualKeyboard Target="{Binding ElementName=InputField}"
                         InputMethods="en-US:kbd:standard" />
    </StackPanel>
</Window>

Multiple Input Methods

<StackPanel>
    <TextBox x:Name="EmailField" Watermark="Email address" />
    <VirtualKeyboard Target="{Binding ElementName=EmailField}"
                     InputMethods="en-US:kbd:standard, de:kbd:standard, ja:ime:kana" />
</StackPanel>

Code-Behind Configuration

// Get input methods for specific languages using SelectMany + ToList
var inputMethods = new[] { "en-US", "ja", "de" }
    .SelectMany(VirtualKeyboardInputMethod.GetInputMethodsForLanguage)
    .ToList();

// Create and configure a VirtualKeyboard
var keyboard = new VirtualKeyboard
{
    Target = myTextBox,
    InputMethods = inputMethods
};

// Add it to the visual tree
myContainer.Children.Add(keyboard);

Working with TextInputOptions

TextInputOptions attached properties can be applied to the target element to customize keyboard behavior:

<StackPanel>
    <TextBox x:Name="EmailField"
             TextInputOptions.ContentType="Email"
             TextInputOptions.ReturnKeyType="Next" />

    <VirtualKeyboard Target="{Binding ElementName=EmailField}"
                     InputMethods="en-US:kbd:standard" />
</StackPanel>

When to Use VirtualKeyboard vs. VirtualKeyboardScope

Choose VirtualKeyboard when:

• Fixed Target: You need the keyboard to always target a specific input control, regardless of focus.
• Specialized Input: You're building a custom input experience where focus doesn't drive the keyboard target.

Choose VirtualKeyboardScope when:

• Standard Input: You want the keyboard to follow focus automatically.
• Simpler Integration: You prefer a container-based approach with fewer configuration options.
• Automatic Visibility: You want automatic show/hide behavior based on focus changes.

Best Practices

1. Set a Valid Target:

   • Always set the Target property to a valid input element that can receive keystrokes.
   • Without a valid target, keyboard input will have nowhere to go.

2. Keyboard Placement:

   • Position the keyboard where it won't obscure important content, typically at the bottom of the screen.
   • Unlike VirtualKeyboardScope, VirtualKeyboard doesn't automatically manage content scrolling.

3. Input Methods Selection:

   • Choose input methods appropriate for your target audience.
   • For international applications, include layouts for all supported regions.

4. Memory Management:

   • If creating keyboards dynamically, remember to remove them from the visual tree when no longer needed.

5. Responsive Design:

   • Plan your layout to accommodate the keyboard's space requirements.
   • Consider using a Grid with row definitions to allocate space for the keyboard.

Styling

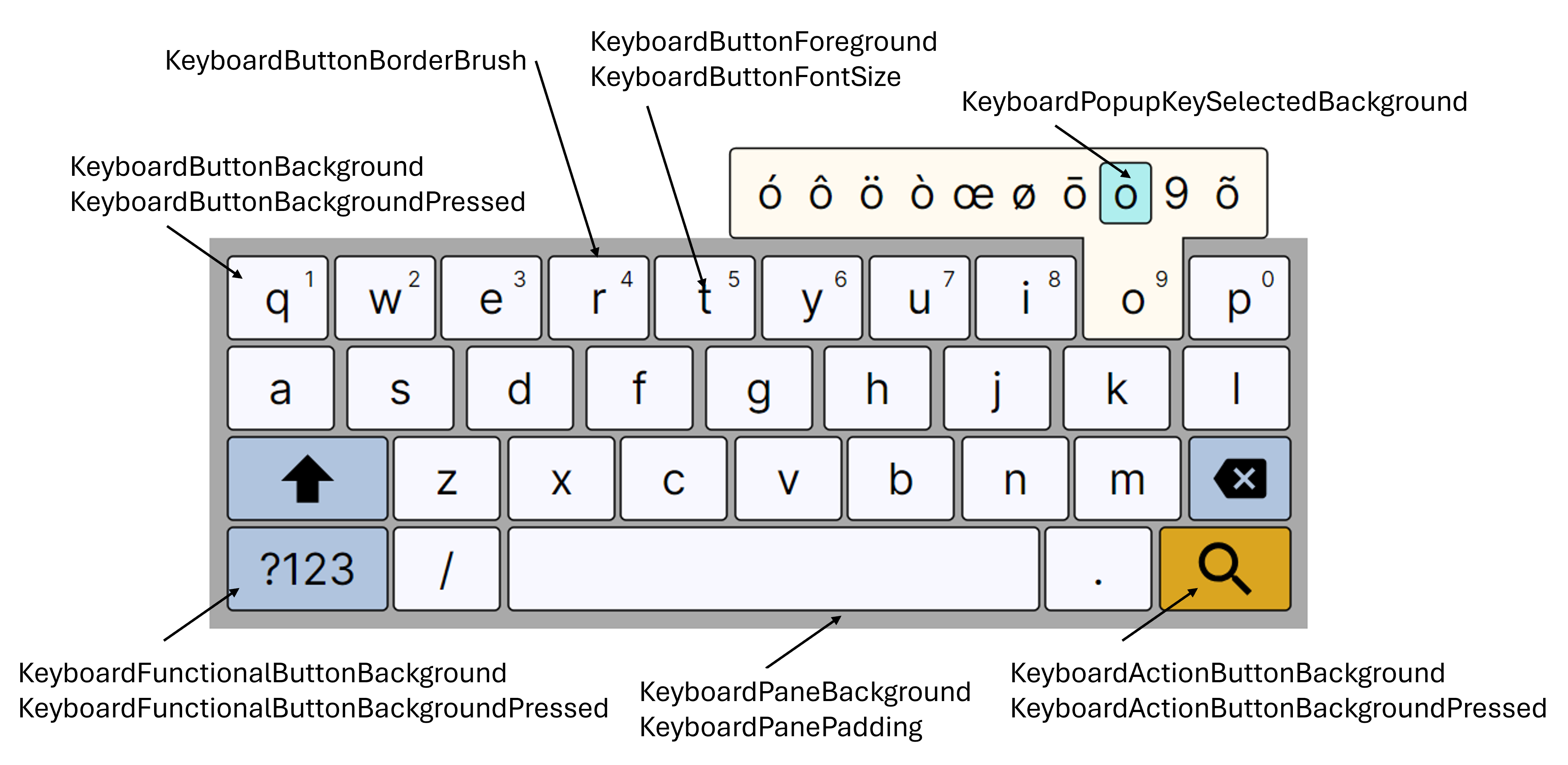

The VirtualKeyboard control in Avalonia supports custom styling via named resources. You can override these resources in your application to customize the appearance of keyboard elements.

Customizable Resources

Below is a list of key resources you can override in your theme or resource dictionary:

Key	Type	Default	Notes
KeyboardActionButtonBackground	Brush	Goldenrod
KeyboardActionButtonBackgroundPressed	Brush	PaleGoldenrod
KeyboardButtonBackground	Brush	GhostWhite
KeyboardButtonBackgroundPressed	Brush	FloralWhite
KeyboardButtonBorderBrush	Brush	Black
KeyboardButtonFontSize	Double	24	introduced in 11.3.1
KeyboardButtonForeground	Brush	Black
KeyboardFunctionalButtonBackground	Brush	LightSteelBlue
KeyboardFunctionalButtonBackgroundPressed	Brush	LightBlue
KeyboardPaneBackground	Brush	DarkGray
KeyboardPanePadding	Thickness	4
KeyboardPopupKeySelectedBackground	Brush	PaleTurquoise

How to Override

To customize, define these resources in your application theme or resource dictionary. For example:

<SolidColorBrush x:Key="KeyboardButtonForeground" Color="#FF0000" />

###ß Example: Custom Theme

<ResourceDictionary>
  <SolidColorBrush x:Key="KeyboardPaneBackground" Color="#FFD700" />
  <system:Double x:Key="KeyboardButtonFontSize">36</system:Double>
  <!-- Add more overrides as needed -->
</ResourceDictionary>

Input methods

View supported input methods

Identifier	Description
af:kbd:standard	Afrikaans
ar:kbd:standard	Arabic
hy-AM:kbd:standard	Armenian (Armenia) Phonetic
az-AZ:kbd:standard	Azerbaijani (Azerbaijan)
eu-ES:kbd:standard	Basque (Spain)
be-BY:kbd:standard	Belarusian (Belarus)
bn-BD:kbd:standard	Bengali (Bangladesh)
bn-IN:kbd:standard	Bengali (India)
bg:kbd:standard	Bulgarian
bg:kbd:bds	Bulgarian (BDS)
ca:kbd:standard	Catalan
hr:kbd:standard	Croatian
cs:kbd:standard	Czech
da:kbd:standard	Danish
nl:kbd:standard	Dutch
nl-BE:kbd:standard	Dutch (Belgium)
en-GB:kbd:standard	English (Great Britain)
en-IN:kbd:standard	English (India)
en-US:kbd:standard	English (United States)
eo:kbd:standard	Esperanto
et-EE:kbd:standard	Estonian (Estonia)
fi:kbd:standard	Finnish
fr:kbd:standard	French
fr-CA:kbd:standard	French (Canada)
fr-CH:kbd:standard	French (Switzerland)
gl-ES:kbd:standard	Galician (Spain)
ka-GE:kbd:standard	Georgian (Georgia)
de:kbd:standard	German
de-CH:kbd:standard	German (Switzerland)
el:kbd:standard	Greek
hi:kbd:standard	Hindi
hi:kbd:compact	Hindi (Compact)
hu:kbd:standard	Hungarian
is:kbd:standard	Icelandic
it:kbd:standard	Italian
it-CH:kbd:standard	Italian (Switzerland)
ja:ime:kana	Japanese (Kana)
kn-IN:kbd:standard	Kannada (India)
kk:kbd:standard	Kazakh
km-KH:kbd:standard	Khmer (Cambodia)
ky:kbd:standard	Kyrgyz
lo-LA:kbd:standard	Lao (Laos)
lv:kbd:standard	Latvian
lt:kbd:standard	Lithuanian
mk:kbd:standard	Macedonian
ml-IN:kbd:standard	Malayalam (India)
mr-IN:kbd:standard	Marathi (India)
mn-MN:kbd:standard	Mongolian (Mongolia)
ne-NP:kbd:romanized	Nepali (Romanized)
ne-NP:kbd:traditional	Nepali (Traditional)
nb:kbd:standard	Norwegian Bokmål
fa:kbd:standard	Persian
pl:kbd:standard	Polish
pt-BR:kbd:standard	Portuguese (Brazil)
pt-PT:kbd:standard	Portuguese (Portugal)
ro:kbd:standard	Romanian
ru:kbd:standard	Russian
sr-Cyrl:kbd:standard	Serbian (Cyrillic)
sr-Latn:kbd:standard	Serbian (Latin)
sk:kbd:standard	Slovak
sl:kbd:standard	Slovenian
es:kbd:standard	Spanish
es-419:kbd:standard	Spanish (Latin America)
es-US:kbd:standard	Spanish (United States)
sw:kbd:standard	Swahili
sv:kbd:standard	Swedish
tl:kbd:standard	Tagalog
ta-IN:kbd:standard	Tamil (India)
ta-SG:kbd:standard	Tamil (Singapore)
te-IN:kbd:standard	Telugu (India)
th:kbd:standard	Thai
tr:kbd:standard	Turkish
uk:kbd:standard	Ukrainian
uz-UZ:kbd:standard	Uzbek (Uzbekistan)
vi:kbd:standard	Vietnamese
zu:kbd:standard	Zulu

See also

• VirtualKeyboardScope - A container control that automatically manages keyboard visibility
• Adding a virtual keyboard
