Attaching Browser or Mobile applications

This page assumes both apps are deployed on the same local network or same machine. For the remote connection, please visit Attaching to the remote tools.

note

For all platforms, AvaloniaUI.DiagnosticsSupport package can be installed in the shared project. As well as this.AttachDeveloperTools() code can be kept in the shared Application class. If any custom configuration is needed per each platform, OperatingSystem.IsPlatform APIs can be used.

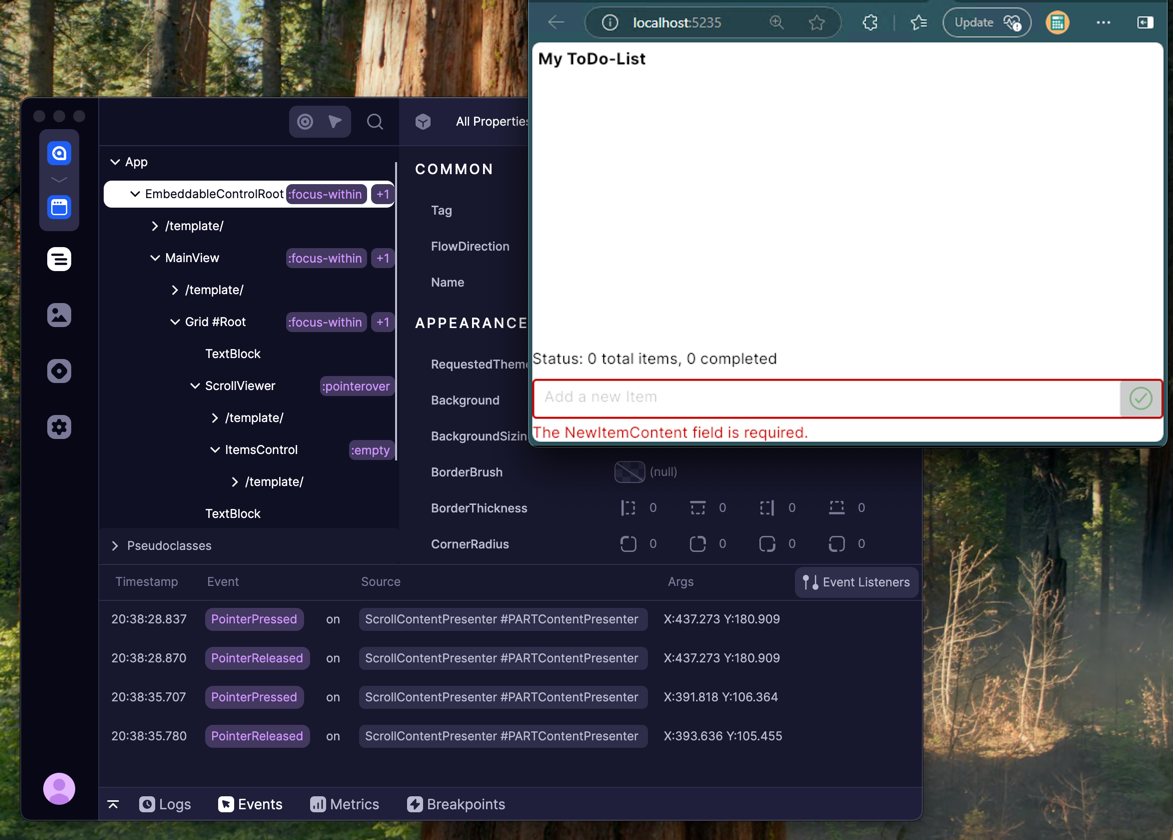

Attaching Browser application

1. Follow Getting Started for the initial setup.
2. Run Developer Tools application. avdt dotnet tool can be used from the command line.
3. Run browser application either via dotnet run or dotnet serve on a published project. Please visit Avalonia WebAssembly documentation for more details.
4. By default, iOS projects configured to attach to Developer Tools on startup. See DeveloperToolsOptions.ConnectOnStartup for details.

note

To avoid conflicts with Chrome Developer Tools, Avalonia tools shortcut can be redefined from F12 to a custom one. See DeveloperToolsOptions.Gesture for details.

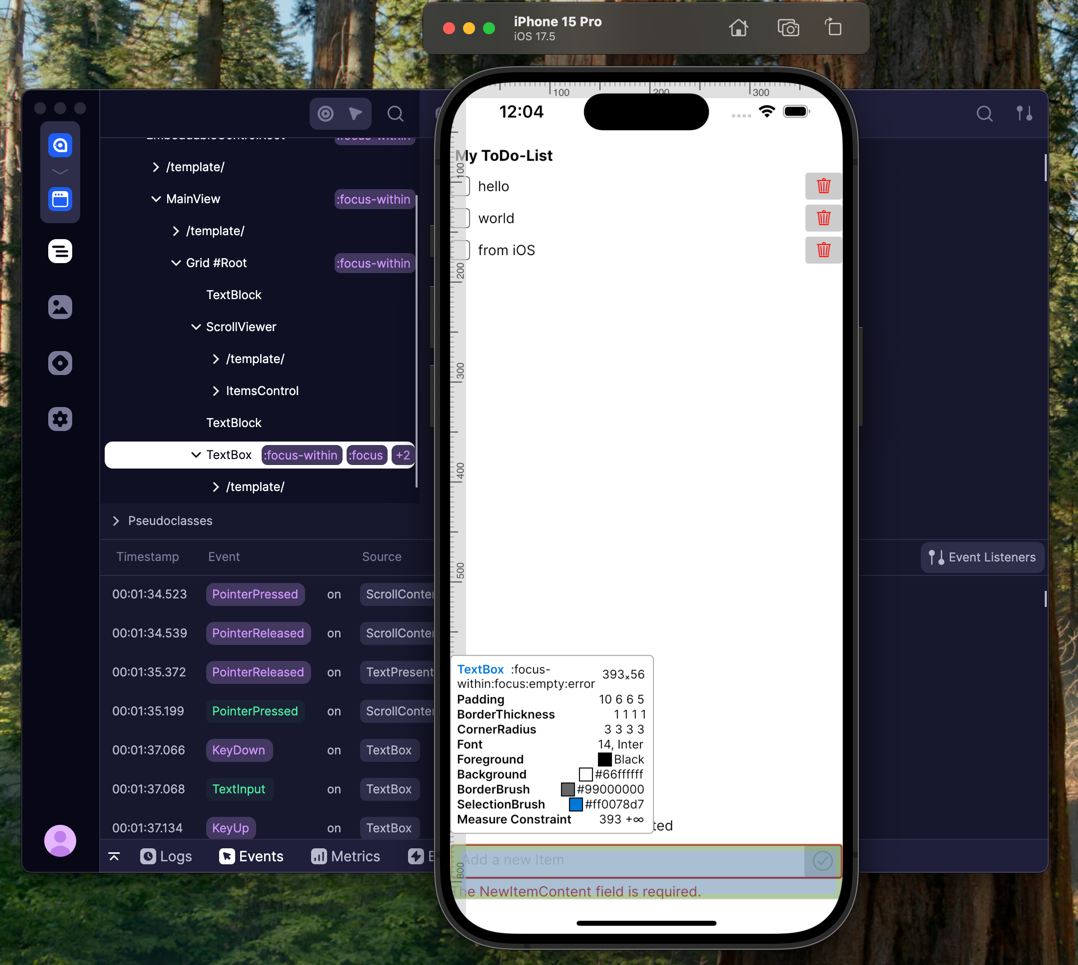

Attaching iOS application

1. Follow Getting Started for the initial setup.
2. Run Developer Tools application. avdt dotnet tool can be used from the command line.
3. Run iOS application from your IDE. Please visit Avalonia iOS documentation for more details.
4. Make sure browser app is focused, so shortcut can be intercepted. Press F12.

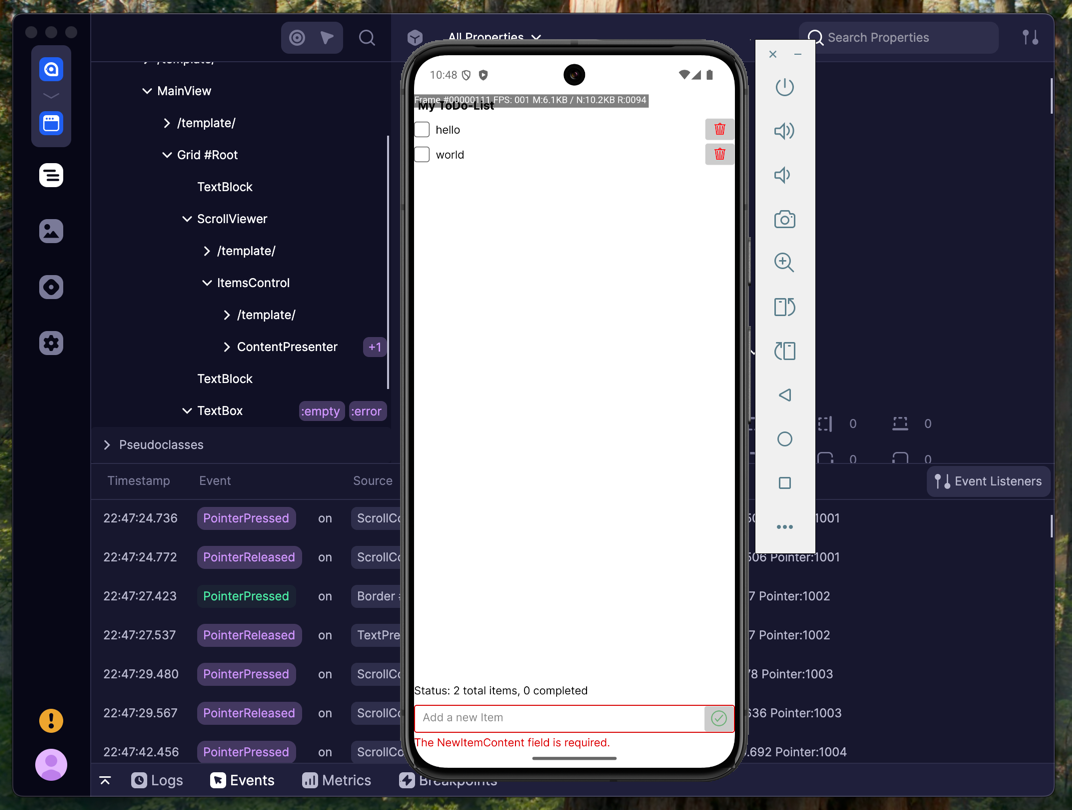

Attaching Android application

1. Follow Getting Started for the initial setup.
2. IMPORTANT: Android doesn't allow any HTTP traffic by default:
   1. Create Resources/xml/network_security_config.xml file:

   <?xml version="1.0" encoding="utf-8"?>
   <network-security-config>
     <domain-config cleartextTrafficPermitted="true">
       <domain includeSubdomains="true">10.0.2.2</domain> <!-- Debug address -->
     </domain-config>
   </network-security-config>

   2. In the AndroidManifest.xml file, update <application> xml node:

   <application android:networkSecurityConfig="@xml/network_security_config">

   3. For more details, visit https://devblogs.microsoft.com/xamarin/cleartext-http-android-network-security/
   4. SimpleToDoList.Android project in this repository also contains these changes for reference.
3. Run Developer Tools application. avdt dotnet tool can be used from the command line.
4. Run Android application from your IDE. Please visit Avalonia Android documentation for more details.
5. By default, Android projects configured to attach to Developer Tools on startup. See DeveloperToolsOptions.ConnectOnStartup for details.

note

10.0.2.2 is a default IP address on Android instead of localhost. It's mapped by the emulator to target host machine. To override it see DeveloperToolsOptions.Protocol.

Attaching WSL2 application

WSL2 is an incredible tool allowing debugging and running of Linux applications from the Windows host. It's possible to follow the same instructions and install full Developer Tools process in the WSL2 system, potentially duplicating installation with the Windows version.

But for convenience of keeping single installation it is recommended to attach Linux running application to the Windows running Developer Tools instance.

1. Follow Getting Started instructions for initial setup and nuget packages installation.

2. Configure WSL2 machine once:

   • (Preferred) Setup WSL2 mirrored mode networking, as specified in Mirrored mode networking documentation. This mode makes Windows localhost directly accessible on WSL instance. No extra configuration and code changes is required.

   • (Alternative) Retrieve Windows host IP address following WSL2 documentation: Accessing Windows networking apps from Linux (host IP). Which then can be used in your AttachDeveloperTools options:

   this.AttachDeveloperTools(o =>
   {
       o.Protocol = DeveloperToolsProtocol.CreateHttp(IPAddress.Parse("YOUR_LOCAL_NETWORK_HOST_IP"));
   });

3. Run Developer Tools instance on your Windows host machine. Typically via avdt dotnet tool command line.

4. Run your Linux app and attach to Developer Tools via F12.
